ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter
| 起源の場所 | 中国、北京 |
|---|---|
| ブランド名 | CSQ |
| 証明 | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| モデル番号 | 6205ce |
| 最小注文数量 | 20-50 PC |
| 価格 | negotiable |
| パッケージの詳細 | フォーム+カートンボックス |
| 受渡し時間 | 25-45の仕事日（交渉可能） |
| 支払条件 | T/T |
| 供給の能力 | 1ヶ月あたりの2000pcs |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 材料 | セラミック、ZrO2 | ベアリングタイプ | セラミックボールベアリング |
|---|---|---|---|
| Percision | P6/ABEC3へのP4/ABEC7 | ケージ | PTFE |
| 特性 | 長続きがする生命、低雑音、高精度 | アプリケーション | ポンプ |
| クリアランス | C0-C5 | 行数 | 単一行 |
| 構造 | 深い溝 | 内径 | 25 mm |
| アウト直径 | 52 mm | 幅 | 15 mm |
| ハイライト | P6/ABEC3 to P4/ABEC7 Precision Ceramic Ball Bearing,20mm Inner Diameter ZrO2 Bearing,47mm Outer Diameter Full Ceramic Bearing |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明

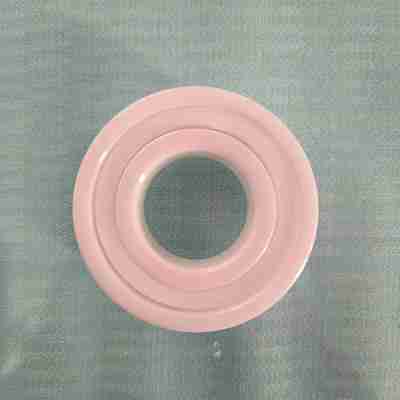

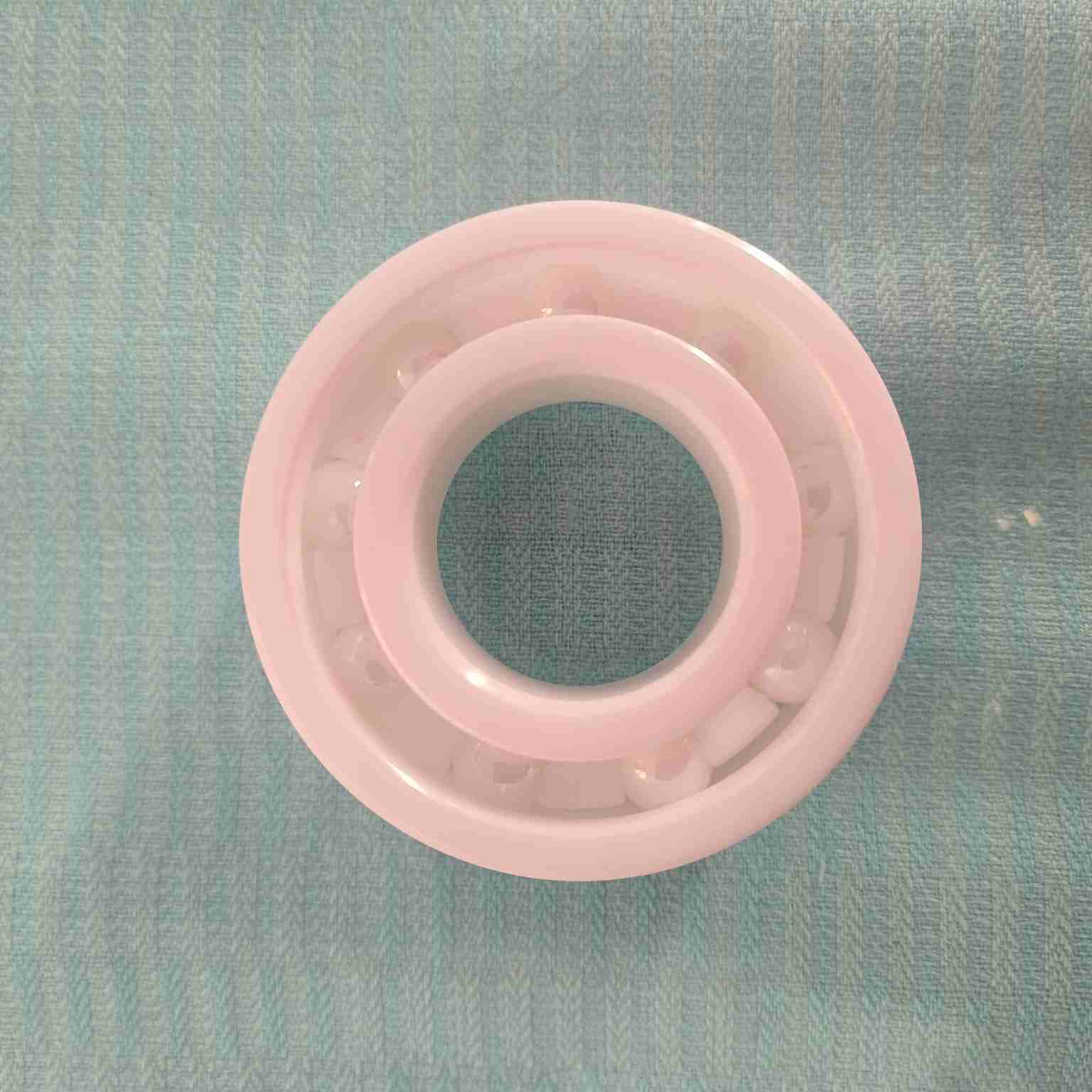

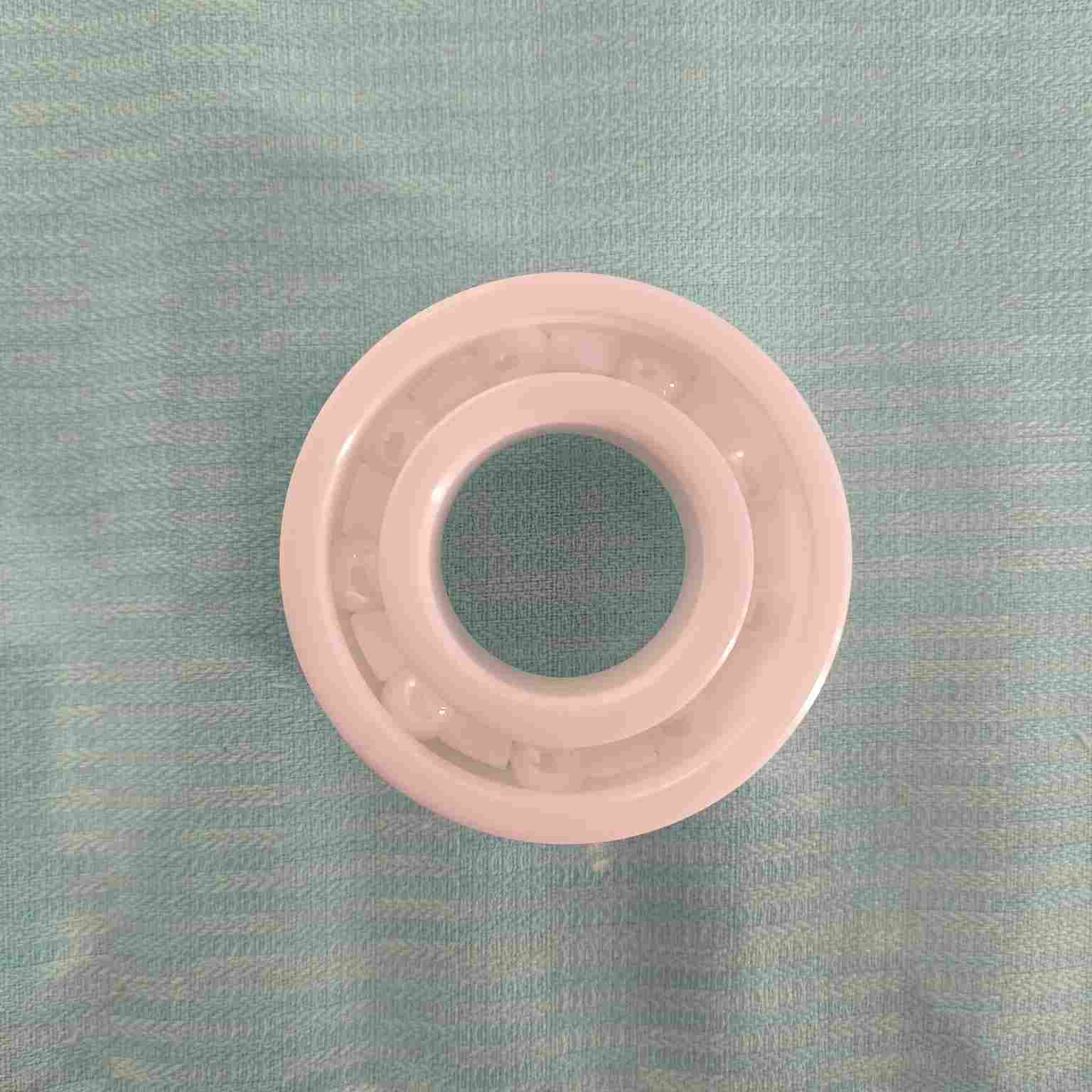

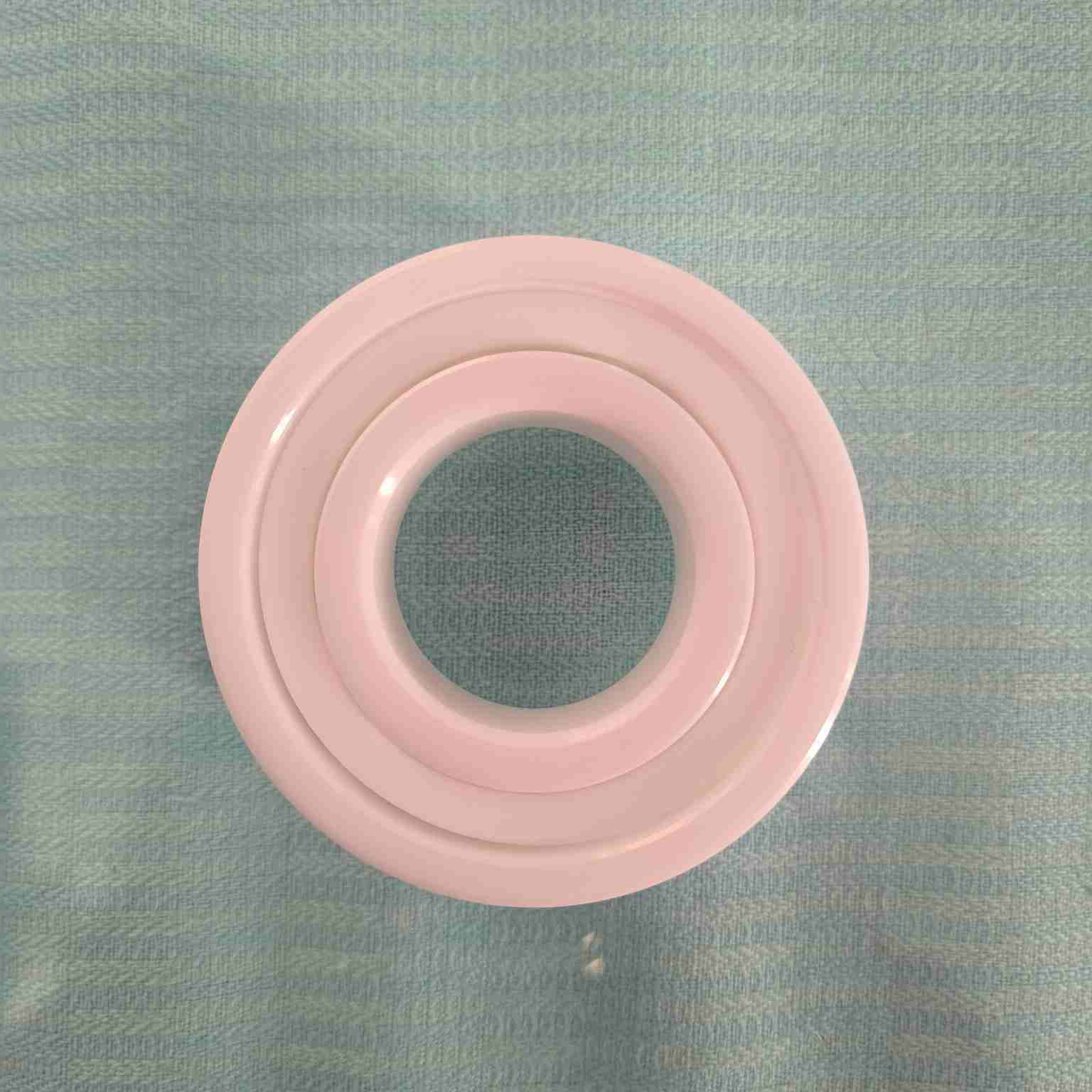

ZrO2 6205ce Ceramic Ball Bearing
Product Overview: Model 6205
The 6205 is a high-performance, full-ceramic bearing designed for demanding applications. Featuring Zirconia (ZrO₂) construction for both rings and balls with a PTFE cage, it's ideal for corrosive environments, extreme temperatures, electrical insulation, and applications where lubrication is impossible.
Product Specifications
| Attribute | Value |
|---|---|
| Material | Ceramic, ZrO2 |
| Bearing Type | Ceramic Ball Bearing |
| Precision | P6/ABEC3 to P4/ABEC7 |
| Characteristic | Long-lasting life, Low noise, High precision |
| Application | Pump |
| Clearance | C0-C5 |
| Number of Row | Single row |
| Structure | Deep groove |
| Inner Diameter | 25mm |
| Out Diameter | 52mm |
| Width | 15mm |
Key Features
- High temperature and cold resistance
- Excellent wear and corrosion resistance
- Magnetic and electrical insulation properties
- Oilless self-lubrication capability
- High-speed operation suitability
Materials & Properties
Rings & Balls: Zirconia (ZrO₂) Full Ceramic Construction
- Complete electrical insulation and uniform resistance to corrosion and wear
- Highly inert, resisting virtually all acids, alkalis, and organic solvents
- Non-magnetic and electrically insulating - essential for sensitive equipment
- High hardness with low density for excellent wear resistance and smooth operation
Cage: PTFE (Polytetrafluoroethylene)
- Superior dry-running capability with self-lubricating properties
- Extremely low friction ensures low starting and running torque
- Outstanding chemical inertness matching Zirconia's corrosion resistance
Technical Parameters
| Parameter | Description |
|---|---|
| Material | Ceramic: ZrO2 |
| Corrosion resistance | Excellent |
| Friction | Lower than steel |
| Wear resistance | Excellent |
| Temperature resistance | High |
| Strength | Higher than steel |
| Durability | Excellent |
| Weight | Lighter than steel |
| Precision | High |
| Biocompatibility | Some ceramic materials are biocompatible |
Applications
This bearing is specifically chosen for applications where standard steel bearings would rapidly fail:
- Chemical & Process Industries: Pumps, mixers, and valves handling aggressive chemicals
- Food, Beverage & Pharmaceutical: Equipment requiring frequent steam cleaning where lubricant contamination is prohibited
- Electrical Insulation: VFD-driven motors to prevent bearing fluting from stray currents
- Semiconductor Manufacturing: Wafer processing equipment avoiding metallic contamination
- Precision Instruments: MRI scanners, analytical instruments requiring non-magnetic components
- High-Temperature & Vacuum Environments: Ovens and vacuum chambers due to thermal stability
Our Manufacturing Advantages
- Professional Team: 40+ years of experience since 1982 with eleven invention patents and dedicated R&D
- Advanced Production: Fully automated grinding and assembly line producing 3 million sets annually
- Material Mastery: Vertical integration from raw materials to finished products for consistent quality
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of ceramic bearing production experience, serving domestic and international clients.
How do we guarantee quality?
We implement strict production protocols, precise inspection processes, and double-layer protective packaging to ensure product integrity.
What products do we offer?
Our range includes ceramic deep groove ball bearings, angular contact bearings, hybrid bearings, linear bearings, and ceramic balls.
Why choose us?
As an integrated manufacturer with three factories, we offer superior quality control, faster delivery, and competitive pricing.
What services do we provide?
We offer custom solutions, product samples, technical consultation, and comprehensive after-sales support.
We welcome your inquiries about our high-quality ceramic bearings. As a professional manufacturer with complete R&D, production, and service capabilities, we are committed to providing superior products and technical support. Contact us today to discuss your requirements.
