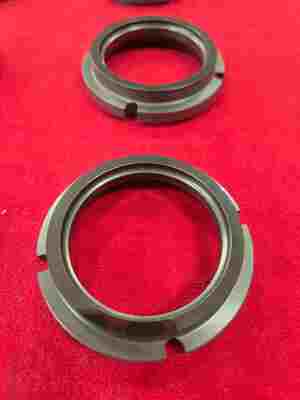

Durable Silicon Carbide Sliding Bearing Extends Pump Life, Reduces Downtime
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | CSQ |
| 証明 | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| モデル番号 | カスタマイズされた製品 |
| 最小注文数量 | 20-50 PC |
| 価格 | negotiable |
| パッケージの詳細 | フォーム+カートンボックス |
| 受渡し時間 | 20-45勤務日 |
| 支払条件 | T/T |
| 供給の能力 | 月あたり2000pcs |
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | カスタマイズされたセラミックスライディングスリーブベアリング | カテゴリ | セラミックスライドベアリング |
|---|---|---|---|
| 材料 | 炭化シリコン | サイズ | 図面に従ってカスタマイズされています |
| 応用 | パンプス | パッケージ | フォーム+カートンボックス |
| 品質 | 高精度、長寿命、OEMシーリブ | 仕様 | 標準サイズとカスタマイズ |
| ハイライト | 1650℃ Max Temperature Silicon Carbide Sliding Bearing,3.15-3.18 g/cm³ Density Ceramic Sliding Bearing,120 W/m°K Thermal Conductivity SiC Sliding Bearing |
||
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明

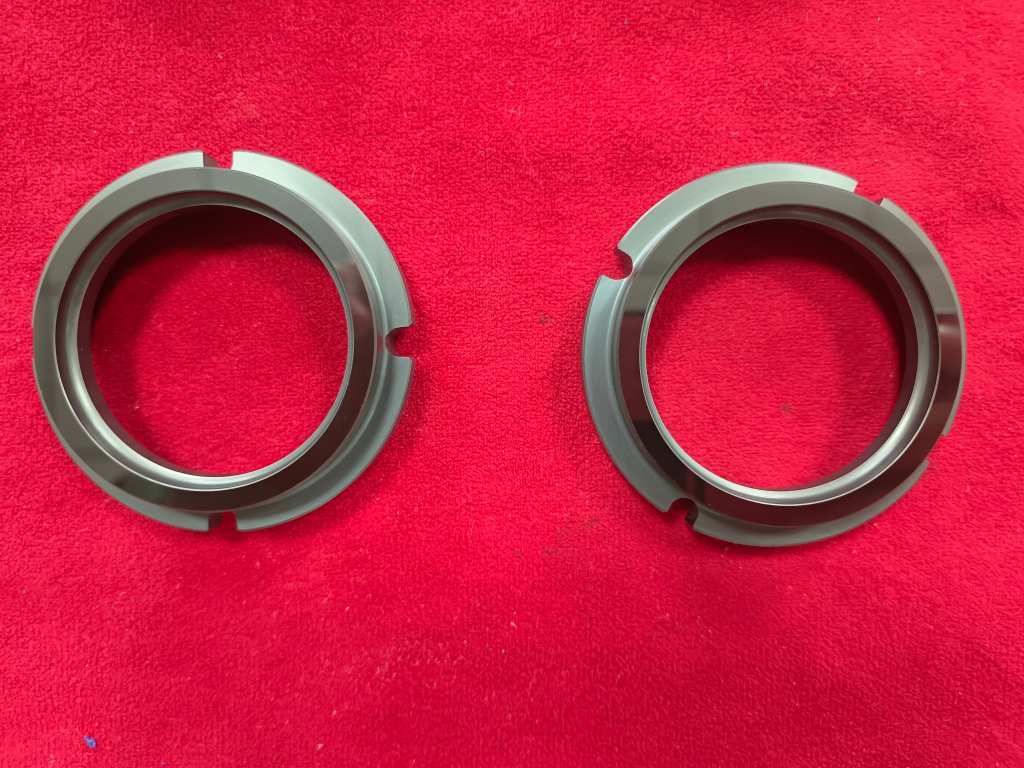

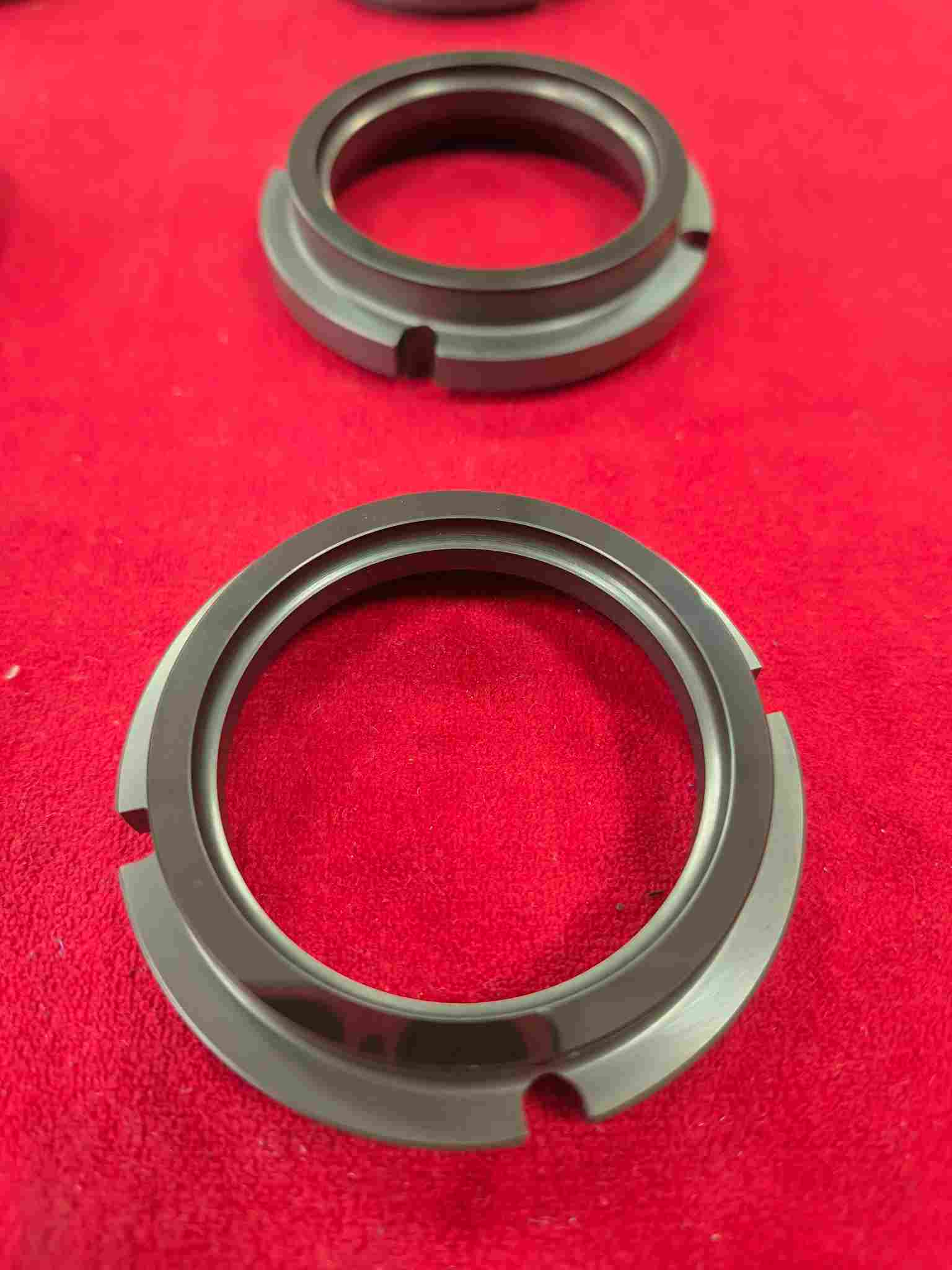

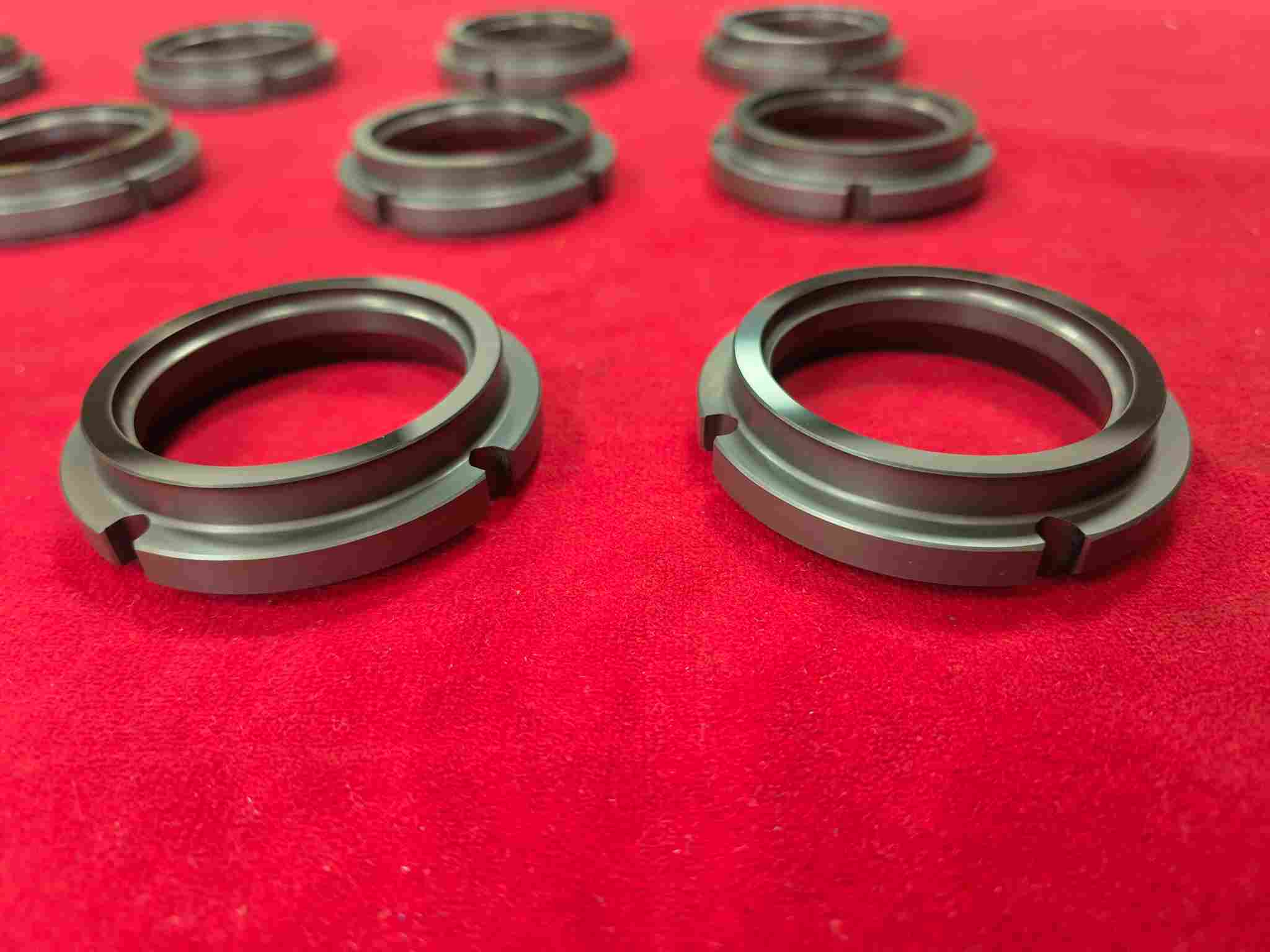

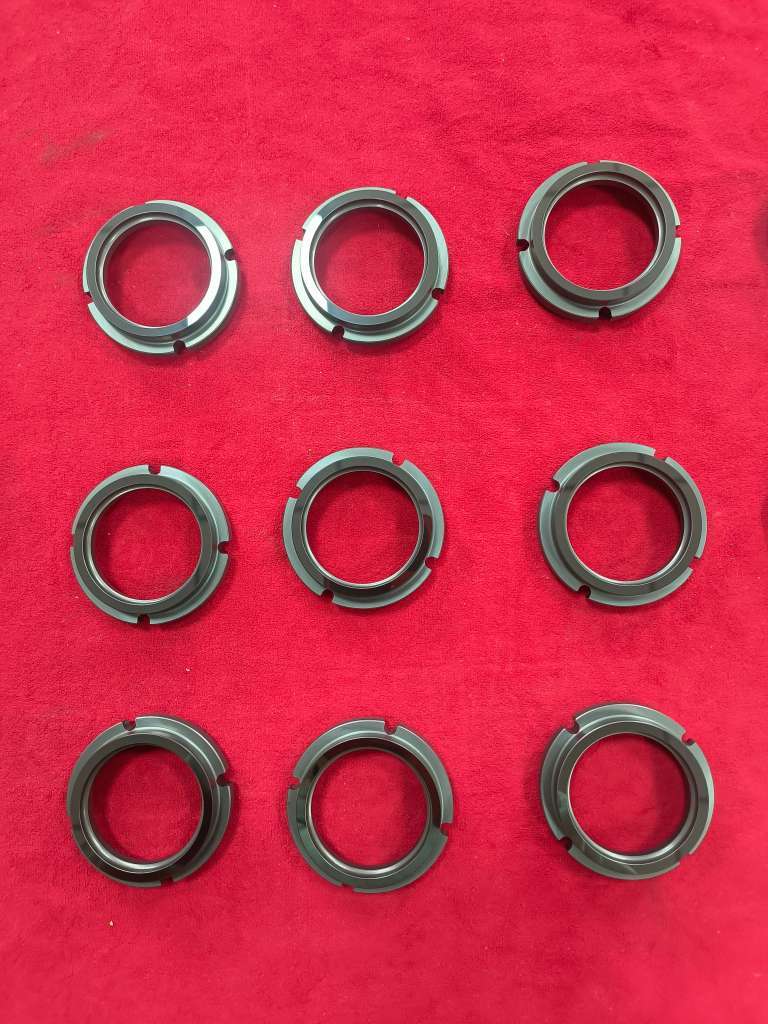

Customized Silicon Carbide Sliding Bearing for Pumps
Product Overview
Silicon Carbide (SiC) sleeves are high-performance ceramic components manufactured from SiC. They exhibit exceptional wear resistance, corrosion resistance, high hardness, and thermal stability, making them ideal for bearings, seals, and transmission systems in harsh environments across industries like chemical processing, machinery, semiconductors, and energy.
Material Properties
| Property | Value |
|---|---|
| Max Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Applications
- Chemical Industry: Pumps, valves, reactor seals
- Machinery: High-speed bearings, precision components
- Semiconductors: Wafer handling fixtures
- New Energy: Photovoltaic and lithium battery production equipment
Advantages of All-Ceramic Bearings vs. Steel Bearings
- Higher Temperature Resistance: Ceramic bearings maintain superior mechanical stability at elevated temperatures, making them ideal for extreme heat applications where steel bearings would degrade.
- Superior Performance in Thermal Cycling: Due to their low thermal expansion coefficient, ceramic bearings experience minimal clearance changes under temperature fluctuations, ensuring reliable operation across a wider range of conditions.
- Enhanced Anti-Seizure & Anti-Jamming Properties: The reduced thermal deformation of ceramic materials minimizes friction-induced binding, significantly improving resistance to seizure and galling.
- Oil-Free Operation Capability: Ceramic bearings exhibit self-lubricating properties and can utilize process media for lubrication, enabling reliable performance in high-vacuum environments or where traditional lubrication is impractical.
- Exceptional Corrosion Resistance: Unlike steel, ceramics are impervious to acids, alkalis, and salts, making them perfect for harsh chemical processing, marine, and corrosive industrial applications.
- Electrical Insulation & Anti-Static Properties: Our ceramic bearings are non-conductive, eliminating static discharge and preventing electrical arcing damage--common issues with conductive steel bearings.
- Non-Magnetic & Contamination-Resistant: Ceramic's non-magnetic nature prevents magnetic particle adhesion, reducing abrasive wear and ensuring smooth operation in MRI equipment, semiconductor tools, and other magnetic-sensitive environments.
Our Manufacturing Capabilities
We have three factories in China, capable of meeting different customer needs, with advanced pressing, sintering and processing machines. Our company logos are ZXSQ and CSQ, and we possess eleven invention patents for utility models.
The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.
Since 1982 we have accumulated abundant experience in production over more than 40 years, devoting ourselves whole-heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipment.
Having undergone several evolutions and transformations, our company has now become the leading enterprise in China's domestic market in the fields of ceramic bearing and ceramic material products.
Our Bearing Advantages
- Free Sample bearing
- ISO Standard
- In Stock bearing
- Bearing Small order accepted
- OEM bearing service
- Customized bearing, Customer's bearing drawing or samples accepted
- Competitive factory price bearing
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.
Q: How can we guarantee quality?
A: We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After completion, we use inspection equipment for precise product verification, and our packaging adopts double protection of foam and carton to strictly ensure product quality.
Q: What can you buy from us?
A: Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc. and all kinds of ceramic balls.
Q: Why should you buy from us not from other suppliers?
A: We are an industry and trade integrated company with three factories, modern production and inspection equipment, enabling better delivery dates and product quality.
Q: What service can we provide?
A: We provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer confirmation.
Welcome Your Enquiry
We cooperate with raw material suppliers to ensure product quality and profit stability without being affected by international raw material price fluctuations. At the same time with raw material production technology, when necessary, we can produce raw materials by ourselves.
We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, and be customers' partner. Welcome to discuss cooperation!
